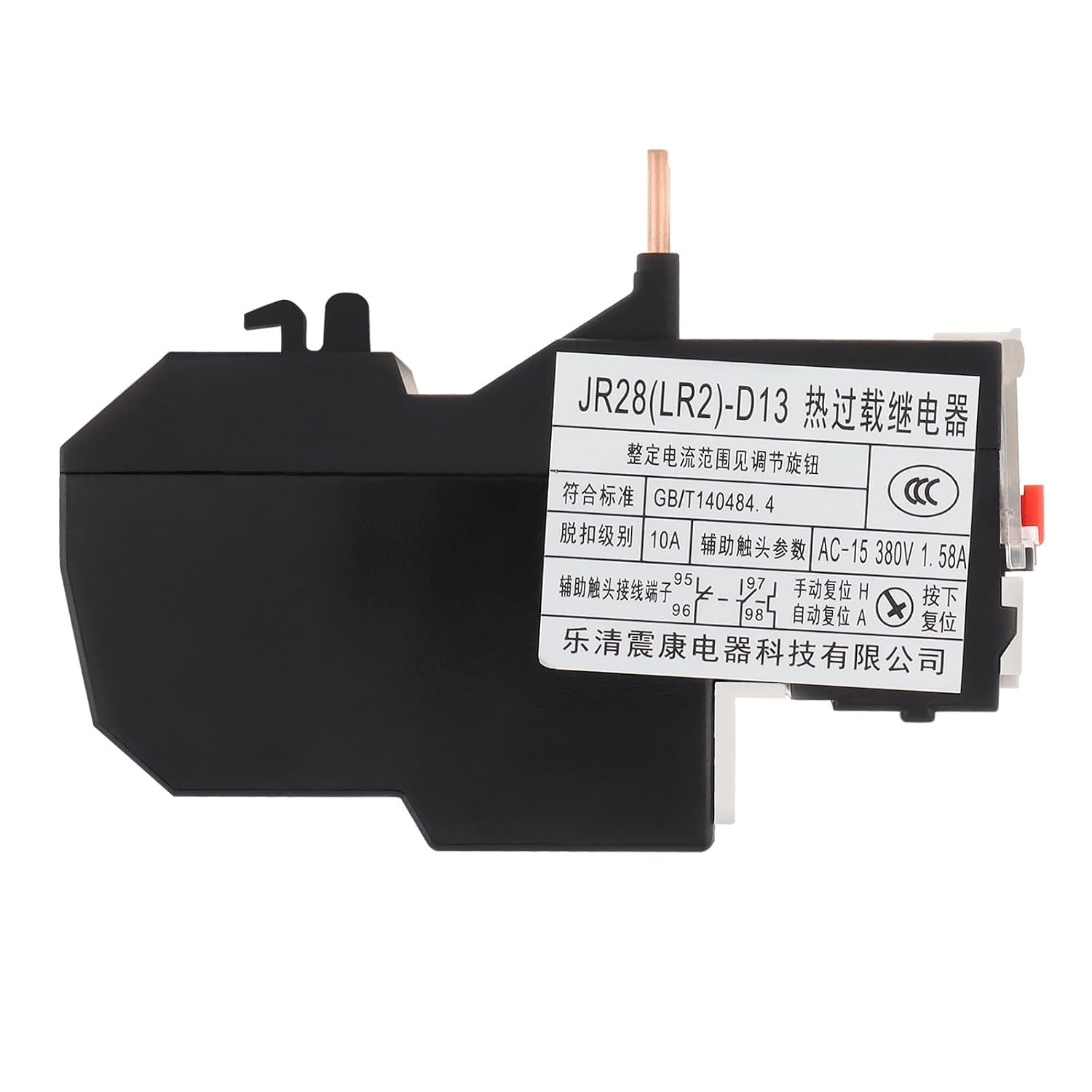

Electric Heat Protect Thermal Overload Relay JR28-D3 9-13A Motor Protector for Protecting The Phase Break

Parameter Information: Material: Plastic, Copper Rated Current: 9-13A Shell Frame Current: 25A Product Description: Product Name: Over Current Protection Relay Features: - The overload protection relay has phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button. - Copper material independent terminal, easy to install. - Independent connection, screw installation and fixation. - High Efficiency: The relay has different mechanism and temperature compensation, with high efficiency and excellent performance. - Good Protection: The relay is used for protecting the phase break when the electric motor is overload. Place of Application: - Electric Motor Product Weight : 350 G / 12.35 Ounces Product Dimensions (L*W*H) : 94*66*47 MM / 3.70*2.60*1.85 Inches Package Weight : 355.0 G / 12.52 Ounces Package Dimensions (L*W*H) : 99*71*52 MM / 3.90*2.80*2.05 Inches Retail Packaging: Yes, Plastic Packaging Package Include: 1 x Overload Relay

• The relay is used for protecting the phase break when the electric motor is overload.
• RATED CURRENT：9-13A, SIZE: 3.1" x 3.8" x 2.4".
• RATED RANGE: This thermal relay can be used in the circuit of 50-60hz, the rated insulation voltage is 690V.
• The overload protection relay has phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button.
• Package include: 1 piece Thermal Overload Relay
